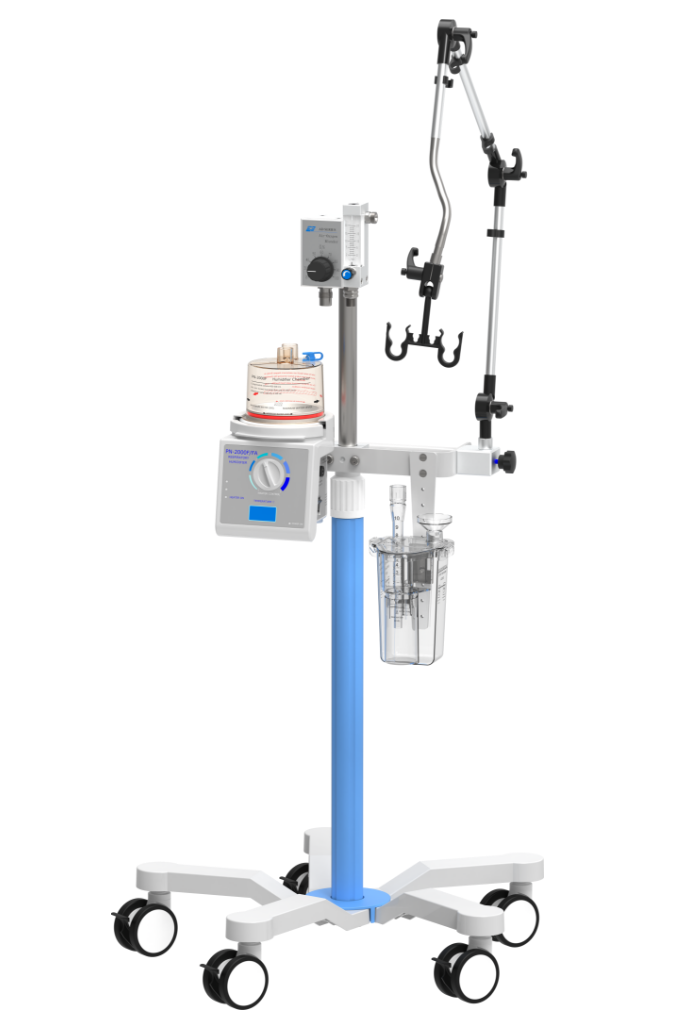

AD-I Bubble CPAP
The CPAP continuous positive airway pressure system AD-I is a pediatric respiratory support medical device designed based on the wide application of non-invasive continuous positive airway pressure in the pediatric field. It is designed for premature infants, newborns, infants and children up to 14 years old. It is used for nasal congestion CPAP ventilation treatment. CPAP mode keeps children breathing spontaneously, and can effectively reduce children's work of breathing.
Superiority
Able to provide a controllable oxygen concentration for babies
Able to maintain functional residual capacity
Can help reduce the work of breathing done by babies
Can reduce the need for invasive mechanical ventilation
Able to provide warm and humid air to babies
Can reduce the incidence of chronic pneumonia ( CLD )
Can improve some lung physiological indicators, such as height, weight, etc.
Specification
Applicable Patients:Premature neonates and infants up to 14 years old
FiO2 :21%~100%
Flow Rate: 0~18LPM
CPAP Pressure: 0.3~1.0kPa(3~10cmH2O)
Noise:≤55dB(A)
Power:AC220V,50-60Hz (Optional: AC110V, 50-60Hz)
Gas Source:Air / Oxygen @ 0.3 MPa -0.4 MPa
Alarm:Gas supply pressure difference >0.2 MPa
Humidifier:Standard: PN-2000F
Optional:
Humidifier: PN-2000FB, PN-2000FC850
Medical Air Compressor: PN-4000
Operating Temperature Range:5℃ - 40℃
Storage Temperature Range:-20℃ - 55℃
CPAP Generator
The oscillating gas pressure from 3 to 10 cmH2O can be easily set through the CPAP pressure rod
Automatic water level adjustment mechanism to ensure constant CPAP pressure level
The detachable water tank can keep the CPAP from being interrupted to drain the excess condensate
General parameters:
Optional
+Medical Air Compressor
Exhaust Pressure: ≤ 0.7MPa
Output Pressure: 0.25MPa~0.40MPa
Flow Rate: ≥25L/min
The Noise Value of the Whole Machine: ≤55 dB(A)
+PN-2000F/FA Medical Electric Heating Humidifier
Working Temperature: 30 ℃ ~37 ℃
Heating Plate Temperature: ≤ 85 ℃
Humidification Tank Capacity: 280ml (F- adult type ) 230ml (FA- child type )
Maximum Flow: 180L/min
Maximum Working Pressure: 2kPa
