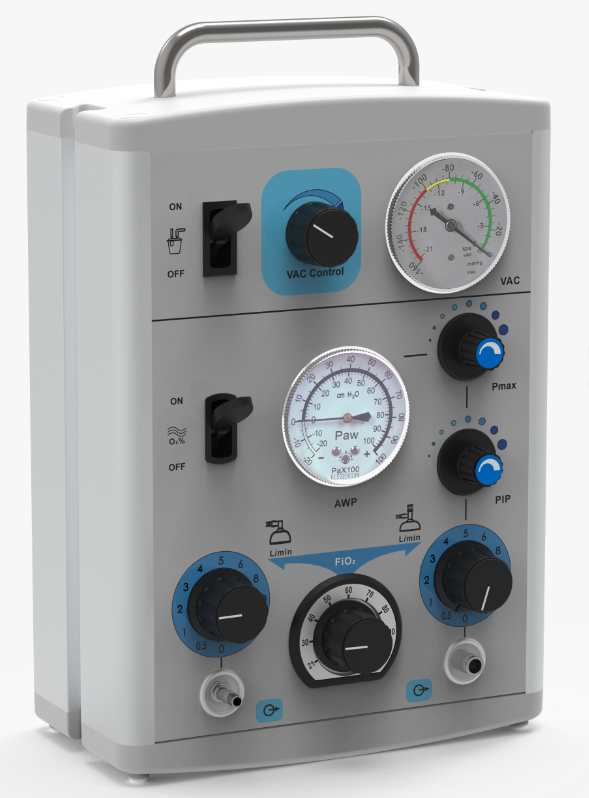

Infant Resuscitator AD3000-TPC
Performance Parameter
With safe, precise and controllable PlP (Peak Inspiratory Pressure) and PEEP (Positive End Expiratory Pressure), Pigeon Infant Resuscitators are easy to operate, and can provide temporary breathing support. It is crucial for NlCU units, Nurseries, Delivery and Transport System. It’s compact, portable and easy to operate.
With a precise manometer, the PlP and PEEP can be monitored easily and accurately. The delivered pressures would not be influenced by the operator's experience, training, attention and level of fatigue.
With built-in air oxygen blender and vacuum suction, the Infant Resuscitator AD3000-TPC offers oxygen supply, vacuum suction and resuscitation functions for infants with a body weigh up to 10kg. It saves space and time from preparation with its innovative and compact design.
Parameters
?Gas Supply
Gas supply: Medical oxygen and air
Gas supply input pressures range: 0.3MPa~0.4MPa(300～400kPa)
Gas source flowrate: ≥50L/min
?Alarm
Single gas source fault alarm
Low pressure alarm range:150±50kPa
?Air oxygen mixing function
Oxygen concentration: 21%～100%
Flowrate setting range: 0～15L/min
?Peak Inspiratory Pressure(PIP)range: approx. 2～57cmH2O，@5L/min-15L/min
The factory setting of Peak Inspiratory Pressure (PIP) is 20 cm H2O, can be adjustable.
?Positive End-expiratory Pressure (PEEP) range :approx. 0.3～23cmH2O，@5L/min-15L/min
Vacuum suction function
Vacuum setting knob setting range: 0～18.67±1.33kPa (0～140 ±10mmHg)
Free air flowrate: <20L/min (at the maximum vacuum setting)
Vacuum response time: when the input gas source pressure is 500kPa, vacuum in 10 seconds should be at least 17.34kPa (130mmHg)
Scale range of vacuum gauge: 0～21kPa (0～160mmHg)
Gas wastage: <28L/min (at the maximum vacuum setting)
Operating environment requirements:
Temperature: 5℃~40℃
Relative humidity: up to 95%
Atmospheric pressure: 860~1060hPa
Transport and storage environment requirements:
Temperature: -40℃~55℃
Relative humidity: up to 95%
Atmospheric pressure: 500～1060hPa
