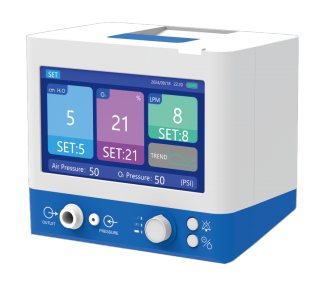

AD-V Neonatal & Pediatric CPAP(CPAP + HFNC System)

Neonatal & Pediatric CPAP + HFNC Systemfor all clinical settings, including transport

Technical Specifications

Operating Modes :nCPAP, bCPAP, HFNC

nCPAP :Pressure range: 2 cmH2O to 10 cmH2O

            Accuracy: ±1 cmH2O

bCPAP: Flow setting range: 2 LPM to 15 LPM

            Pressure setting range: 3 cmH2O to 10 cmH2O; set by bubble CPAP generator

            Accuracy: ±1 cmH2O

HFNC: Flow setting range: 2 LPM to 15 LPM

           Accuracy: ±1 LPM

Main Unit Dimensions: 235mm * 280mm * 240mm

Product Weight: About 4.6kg

Input Gas Supply (O2) :41-70PSI / 0.28MPa - 0.48MPa

Display: 10.1 inch ips touch screen with 1024*600 resolution

User Interface: Single knob with button

Working Voltage: 110V/220V, 50Hz/60Hz

Power Consumption: 48VA

Internal Battery: 11.1V, 8000mAh Up to 7 hours running time, rechargeable

Oxygen Control: FiO2 setting range: 21% to 100%

                             Scale mark: 1%

                             Accuracy: ± 5%

Saftey Cutoff :Electronic valve：12 cmH2O - 18 cmH2O more than 2 secondsor ≥18 cmH2O

                        Mechanical relief valve: 35 kPa

Patient Population: Neonates & Pediatric

Storage Condition 0℃ to 50℃

Unit Installation Site :Trolley, ambulance, portable

Application: Medical treatment, hospitals, during transport
