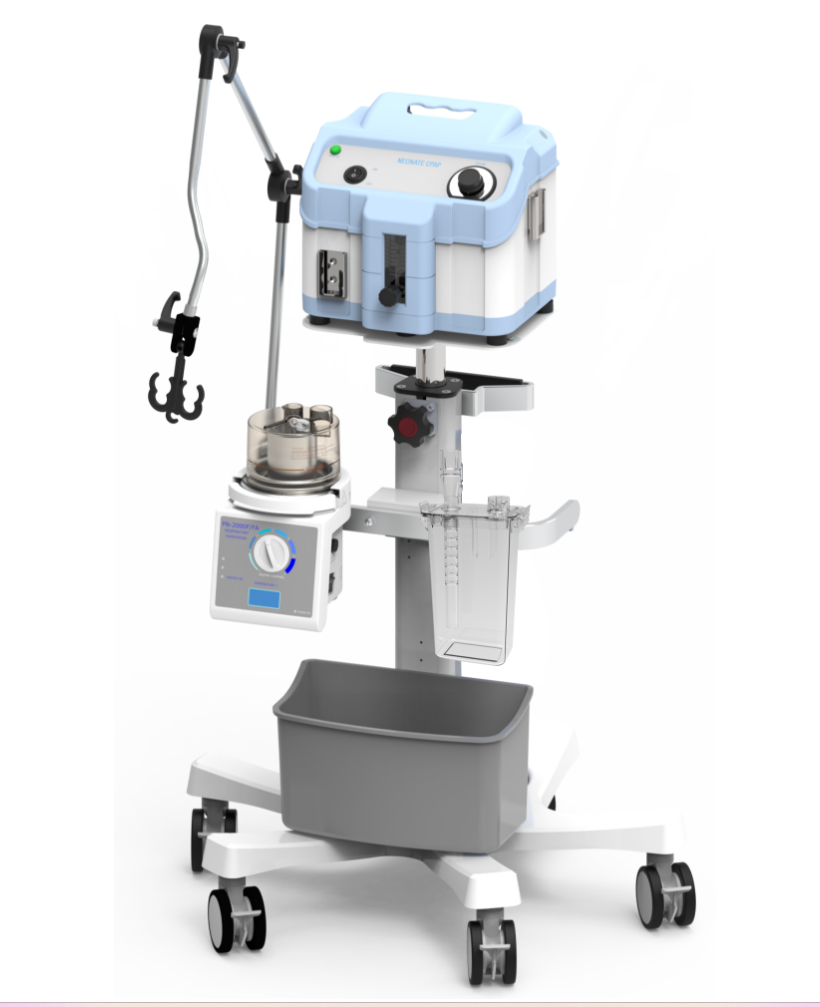

Neonatal continuous positive airway pressure respiratory support system, that is, CPAP respiratory support system that uses nasal mask or nasal CPAP (Nasal-CPAP) to send continuous positive airflow into the airway. Refers to under the condition of spontaneous breathing, the patient should have a stable respiratory drive and appropriate tidal volume, and artificially apply a certain degree of positive airway pressure during the entire respiratory cycle, so as to help prevent airway collapse and increase functional residual capacity , Improve lung compliance, and increase oxygenation. It is used for newborns with spontaneous breathing to provide continuous positive pressure ventilation support.
Specification
Model:AD-IA
Mode：Bubble CPAP
Application Range：Neonatal patient with spontaneous breathing, to offer continuous positive ventilation support.
FiO2 ：21%-100%
CPAP：300Pa-1000Pa(3cmH2O-10cmH2O)
Flow rate：1-10L/min(Customization：15-20 L/min)
Noise< 55 dB(A)
Alert mode：Pneumatic
Indicator：Equipment is in working status when the light up.
Power source：AC 220V/110V, 50-60 Hz
Power rate：60VA
Gas source：Oxygen@0.3 -0.4 MPa
Alarm：Sound alert
Humidifier：Standard: PN-2000F; Optional: PN-2000FB, PN-2000FC850
Air compressor：Inbuilt
Feature
1.Integrated Air-Oxygen Blending System
Mechanically precision-engineered gas blending system
2. External Humidification Device
Temperature-controlled hydration of therapeutic gasesConsistent humidity outputDelivery system: Antimicrobial corrugated tubing with low-resistance design
3. Bubble CPAP Generator
Pressure range: 3-10 cmH2O (user-adjustable)Safety: Intrinsic pressure limitation: maximum output capped at 10 cmH2O Durability: Shatter-resistant polycarbonate construction
4.Integrated Oil-Free Air Compressor
Eliminates external medical air dependency
5. Patient Interface Options
Nasal Prong System:8-size gradient (preterm to pediatric)
