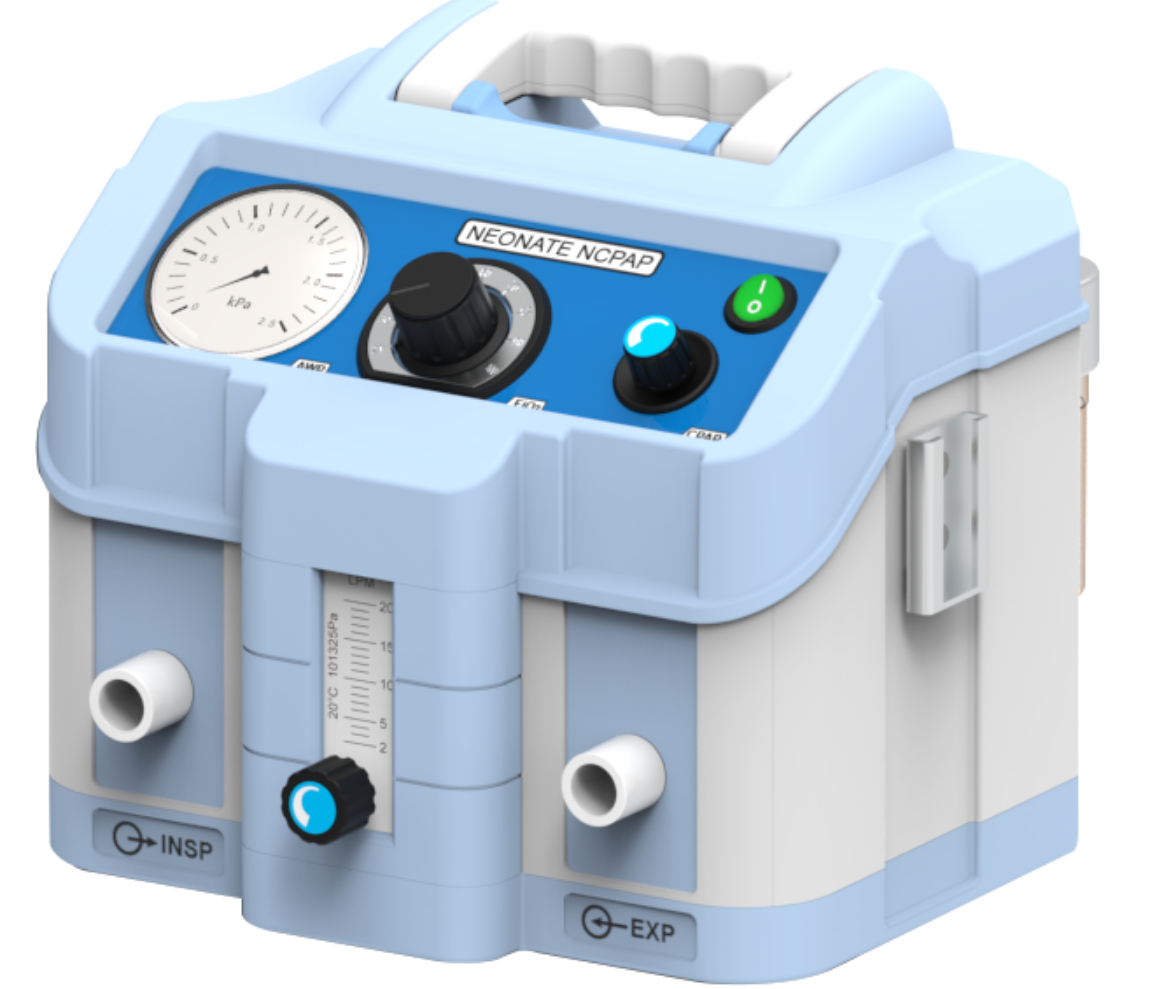

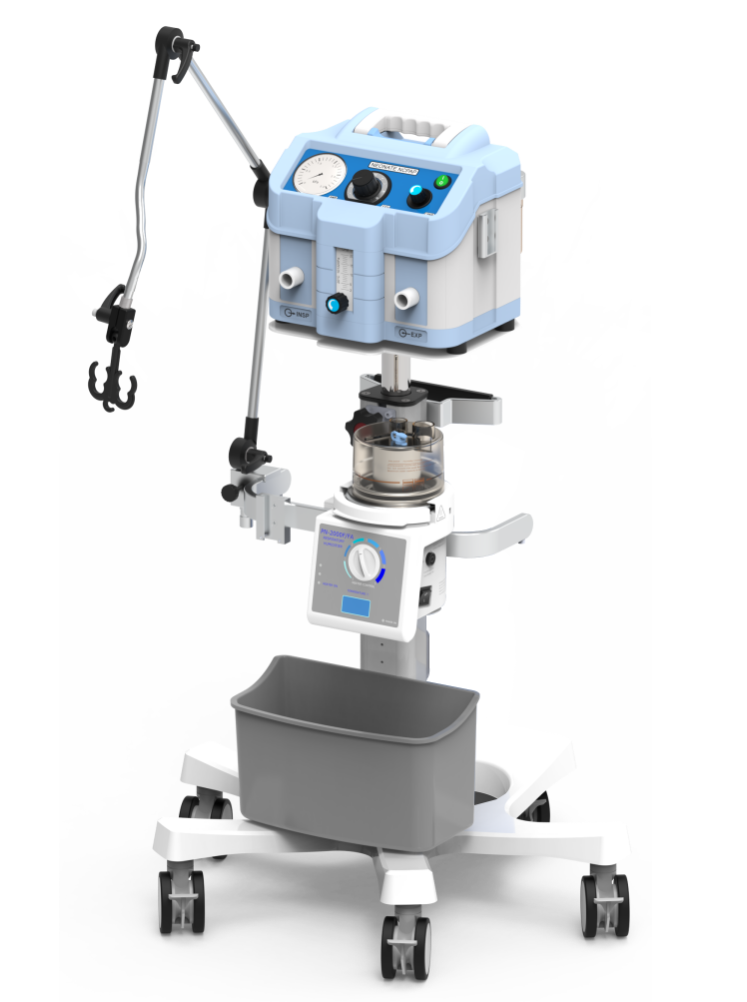

nCPAP system is a neonatal respiratory support medical device designed based on the wide application of non-invasive continuous positive airway pressure in the pediatric field. It is designed for premature infants, newborns, infants and children up to 14 years old. It is used for nasal congestion CPAP ventilation treatment. CPAP mode keeps children breathing spontaneously early, and can effectively reduce children's work of breathing.
Specification
Model: AD-IA(N)
Mode :nCPAP
Application Range:Neonatal patient with spontaneous breathing, to offer continuous positive ventilation support.
FiO2:21%-100%
CPAP:200Pa-1200Pa(2cmH2O-12cmH2O)
Flow rate:2-10 L/min(Customization:15-20 L/min)
Noise< 55 dB(A)
Alert mode:Pneumatic
Indicator:Equipment is in working status when the light up.
Power source:AC 220V/110V, 50-60 Hz
Power rate:60VA
Gas source:Oxygen@0.3 -0.6 MPa
Alarm:Sound alert
Humidifier:Standard: PN-2000F; Optional: PN-2000FB, PN-2000FC850
Air compressor:Inbuilt
Feature
1.Integrated Air-Oxygen Blending System
Mechanically precision-engineered gas blending system
2. External Humidification Device
Temperature-controlled hydration of therapeutic gases Consistent humidity output
Delivery system: Antimicrobial corrugated tubing with low-resistance design
3. Integrated CPAP Generator
Pressure range: 2-12 cmH2O (user-adjustable)
4.Integrated Oil-Free Air Compressor
Eliminates external medical air dependency
5. Patient Interface Options
Nasal prong system:8-size gradient (preterm to pediatric)
